22.0 MFD 450 volt Run Capacitor
MOTOR RUN CAPACITOR – TERMINALS
Motor run capacitors are resin filled with plastic case for light and economical design and have push on terminals for simple installation. Suitable for continuous operation in wide range of applications with temperature range from -25 to +85 degrees in 50/60Hz. Applications include pumps, electric motors, air conditioning.
- Capacitance +/- 5%
- Rated voltage up to 440v
- Frequency 50/60Hz
- Push on quick connect terminals
SPECIFICATIONS
– WB = 400v B (10,000 hrs)
450v C (3000 hrs)
– ML = 400v A (30,000hrs)
450v B (10,000 hrs)

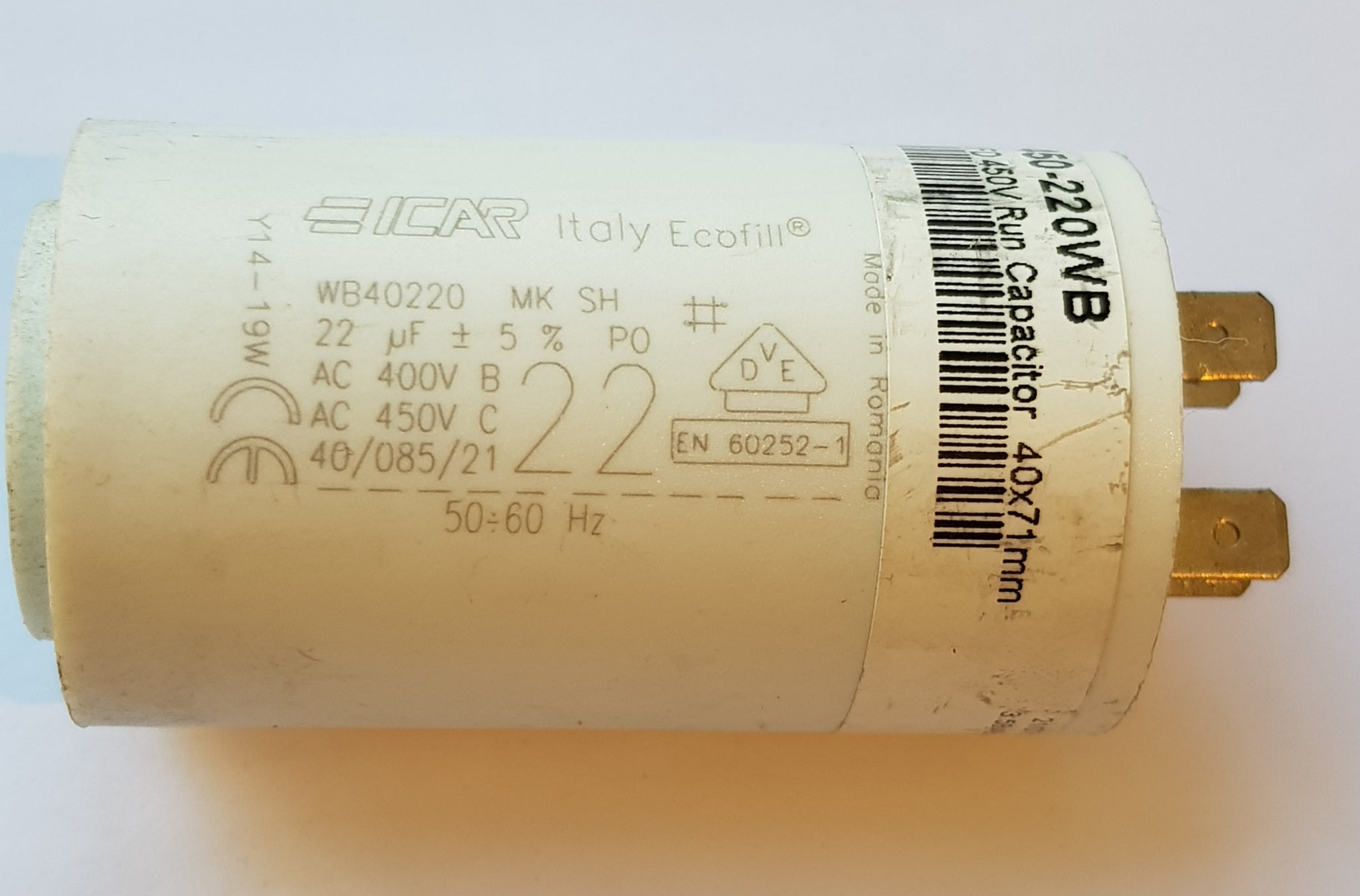

Due to availability may vary in looks from picture
Product cannot be returned
